Chapter 3. Radial Dirod #7

3.1. Principles

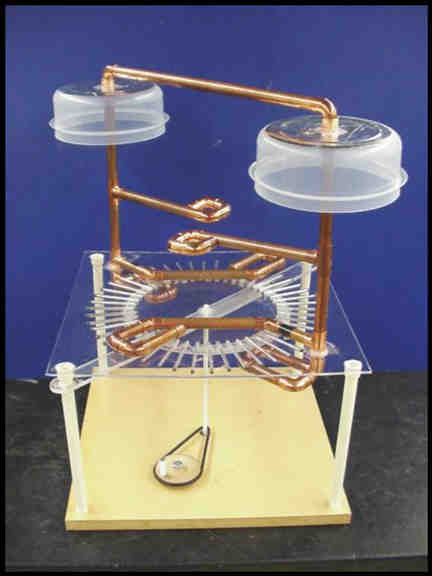

Dirod #7 is essentially a scaled-up Dirod #6 with enhancements to the inductors and collectors to reduce corona loss. Please read the Dirod #6 instructions before assembling Dirod #7. Only the differences between #6 and #7 will be given here.
